Using Adapter for 16 pin header with PlanetCNC controllers

in

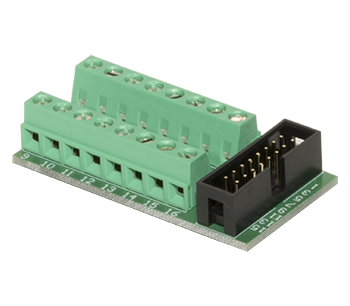

If you need to connect your external electrical equipment such as sensors, switches, buttons, encoders with controller using single wires, you can use adapter for 16pin header.

adapt16_1

Adapter pinout when connected to CTRL header of Mk3 controller:

ctrloriginal_small

Adapter pinout when connected to JOG header of Mk3 controller:

ctrl_small

Adapter pinout when connected to LIMIT header of Mk3 controller:

limit_small
